Explosionproof Capacitive Touch Screen 10.1 Inch With COF Type / USB Interface Financial System New Retailing

Product Categories
Shenzhen Touch-China Electronics Co.,Ltd.
Contact Now

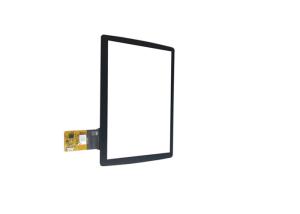

Explosionproof Capacitive Touch Screen 10.1 Inch With COF Type / USB Interface Financial System New Retailing

  • 1
  • 2

Brand Name : Touch China

Model Number : ZCC-3972V1

Certification : CE,ROHS,FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20K pcs per month

Delivery Time : 10-15 days

Packaging Details : Standard export package

TP type : Projected capacitive touch panel

Touch points : 10points

Interface : USB

TP Structure : Cover Glass+UV Glue+ITO Sensor Glass

Surface Hardness : ≧7H

IC controller : ILITEK

Transmittance : ≥85%

Input Method : Finger Or Capacitive Pen

OS : Win7, Win8, Win10, WCE, Android, Linux, XP

Warrently : 1 Year

Contact Now

10.1inch Projective Capacitive Touch Screen with COF type / USB interface

Basic specification:

Size 10.1 inch
Total thickness 3.3±0.2mm
Outline of Cover Lens 243.56*155.54+0.1mm
Outline of ITO Sensor 227.11*147.7±0.2mm
Viewing Area 217.06*135.4±0.2mm
Active Area 218.8*137.4±0.3mm
Interface USB
Input voltage 5V
Response time <10ms
Report rate 100 HZ
Input method Hand writing or capacitive pen
Transmittance ﹥85%
IC Controller: WEIDA, EETI, Silicon Works (optional)
Cover glass thickness 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (optional)
Cover glass treatments AG, AR, AF, AE (optional)
Working temperature and humidity -20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity -30°C~80°C, 20~85% RH, non-condensing
ESD Air discharge 8KV
ESD Contact discharge 4KV
Package list 10.1"Touch panel + USB cable

Features:

  • Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
  • No ghost after the first calibration, drift-free.
  • Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
  • Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
  • Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
  • Free drive, plug and play.
  • Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
  • Wear resistance, long life, low maintenance costs.

FAQ:

Q: Are you a factory or trading company?

A: We are a factory.

Q: Does your products have CE&Rohs certificates?

A: Yes.

Q: What’s the shipping method?

A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

Q: What’s the payment methods?

A: T/T, 30% deposit before production, the balance before shipment.

Q: What size of touch screen can you manufacture?

A: 3.5” to 65”, the bigger size are researching and developing.

Delivery time:

  • Samples in stock: 1~3 working days
  • Customized project: 10~15days for samples
  • Mass production: 15~18days

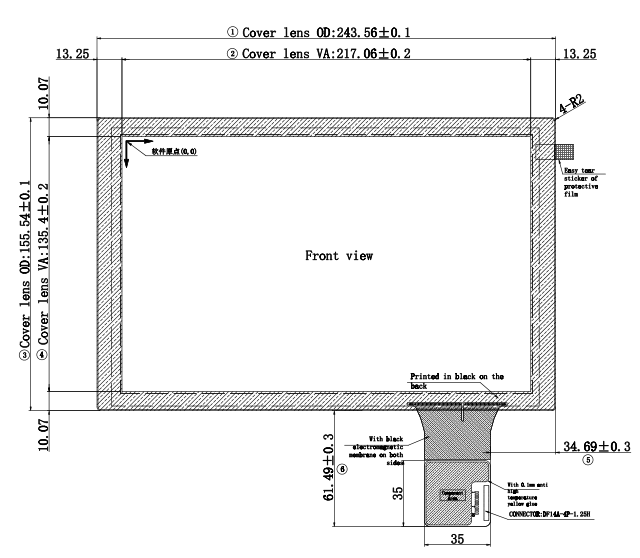

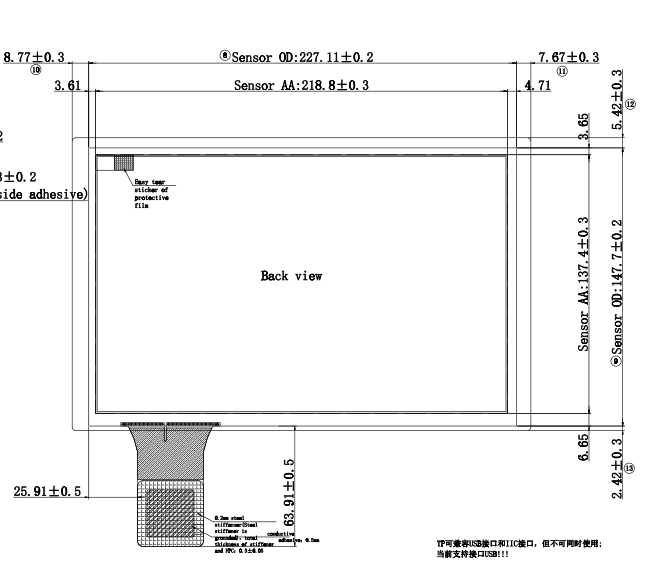

Technical Drawing:

Explosionproof Capacitive Touch Screen 10.1 Inch With COF Type / USB Interface Financial System New Retailing

Explosionproof Capacitive Touch Screen 10.1 Inch With COF Type / USB Interface Financial System New Retailing

Explosionproof Capacitive Touch Screen 10.1 Inch With COF Type / USB Interface Financial System New Retailing
